K5600 Joker
The joker line of units are Daylight balanced HMIs. Introduced in 1999, it has a bare-bulb design where the reflector can be removed and lantern-type chimeras can be used with it. A Joker 800 has an output similar to between 2000w and 5000w tungsten fixtures and it draws 12.5 amps.
The most common sizes we use are 400 and 800.

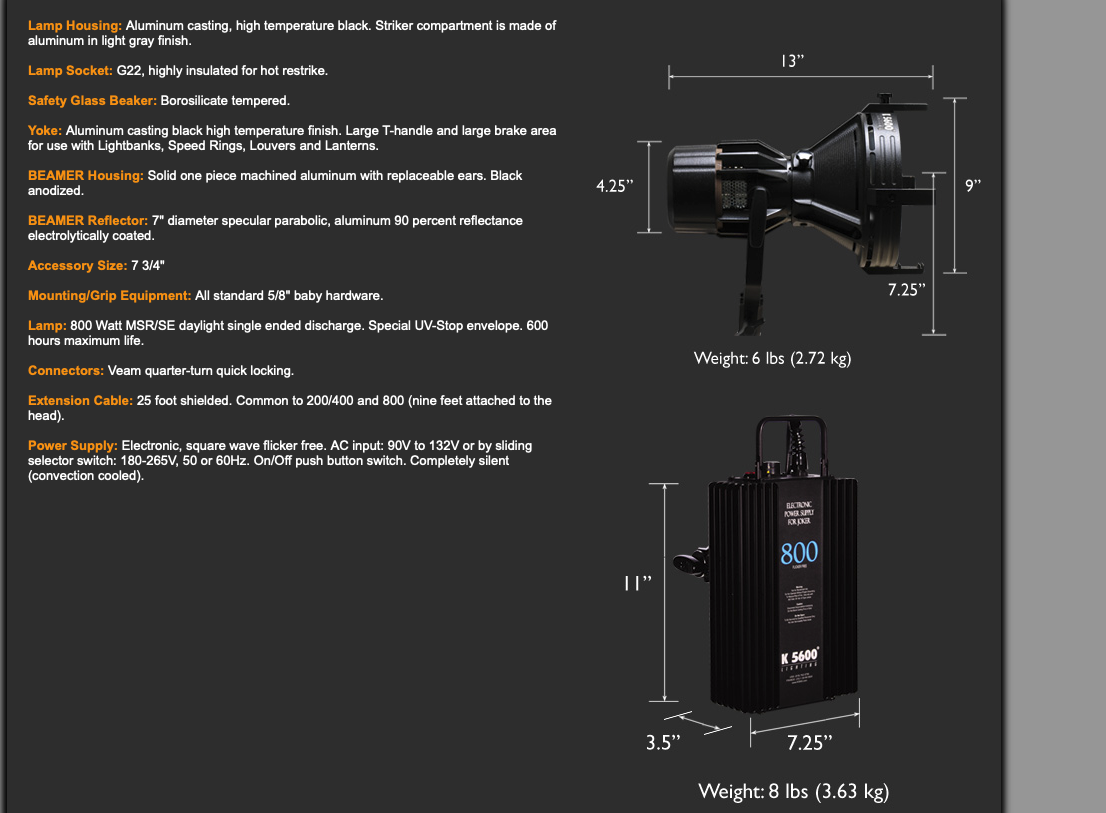

Specs
We no longer use the silver retaining rings for the beakers as we do not send out our units with the beakers. The silver screws remain, as they are important for jo-leko mounting, but the collar is superfluous.
QC Process

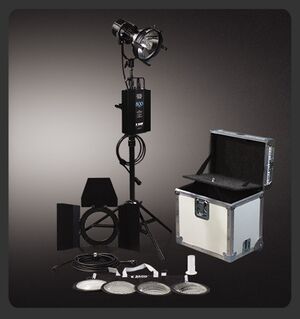

Accessories
The joker will come with
- Spot lens
- Stipple lens
- Wide lens
- Medium lens
- Barn doors
- XS Video Pro with 400
- Small Video Pro 800
- Scrim set with 2 Doubles and a Single
Optional Accessories:
The jokers will fit into the Jem Balls with the optional adapter ring
5' octobank - will require the octospeedring
Bug a Beam Leko adapter - Turns the HMI into a leko with the ability to use the lens tubes from the 750w tungsten lekos.
Building a 400 or 800w Jo-Leko
Substitutions
Arri 1200 - if house power is an issue
Aputure 600D
Joker 400 and 800 can be substituted between each other if need be depending on the use case.
