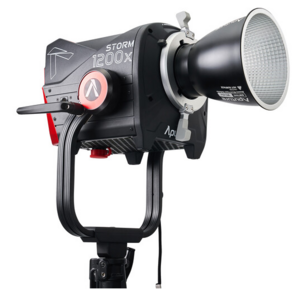

Aputure 1200X Light Storm
The aputure 1200x is a 1200w Bi-Color COB light, though it has a maximum power draw of 1440W. For house power jobs, this light is usually used as a main unit. It uses the BLAIR chip which stands for Blue, Lime, Amber, Indigo, Red, which are all the LEDs it features. Although its bi-color, it also has the ability to dial in green or magenta using these other LEDs. While they don't advertise it as a RGB light, if you go into x,y mode you can achieve a variety of colors. They just won't get as saturated as other lights that are advertised as RGB.
The 1200x also features a locking bowens mount, where you can tighten an additional portion to tighten down on the bowens mount. Creating a more solid fit.
Uses
Can be used as a key light either through a window or inside.
It is bright enough to replicate sunlight for interiors. You can use it as a lantern style light to use as a key light around a table or other group situations.
QC Process
Accessories
These Accessories have all been approved to be used with the 1200D:
- Spotlight Max
- Light Dome II
- Light Dome 150
- Lantern 90
- 1200D Hyper reflectors
- 60x90 softbox
- F10 fresnel
- F10 Barndoors
List of all Apurture accessory compatibility
Troubleshooting
If the light doesn't turn on, you can do these things:
- Check the power source. Make sure power is running to the ballast.
- Wiggle/replace the head feeder.
- Perform Factory Reset.
If you are having issues with DMX, then perform a Factory Reset and also check your DMX connections.
If you are having issues with CRMX connection, download/open the CRMX Toolbox app and check for updates for the Temo2 chip. The CRMX chips are separate chips not controlled by the aputure firmware and require separate updates put out by Lumen Radio.
Firmware Updates
- Download the latest aputure firmware from The Aputure Firmware Downloads Library
- Put the .bin file onto a flashdrive
- Plug the drive into the 1200x Ballast with the head also patched in
- Go to system > Firmware updates
The unit will restart after it updates
CRMX Updates
- CRMX needs to be turned on at the ballast
- Open CRMX Tool box app on the ipad
- Press "scan" This will scan for all available units
- Select the correct Temotwo chip and update
